Specification |
|||
|
Size |
1200*108*55mm |
Actual Power |
240w |
|
Input Voltage |
AC85~265V |
Output Voltage |
DC48V-50V |
|
Output Current |
2.5A |
LED Quantity |
542piece*0.5w |
|
Lifespan |
50,000 Hours |
LED Type |
Samsung301H+660+730nm |
|
Working Environment |
-20~40℃，45%~95%RH |
Ratio |
Full Spectrum |
|
Working Frequency |
50~60Hz |
IP Degree |
IP65 |
|
PPFD |
2659/1ft 1342/2ft 645/3ft 419/4ft |
Lux |
111218 |
|
N.W. |
4.5kg(9.9lbs) |
Lighting Area |
1500*600mm(5ft*2ft) |
|
Materials |
Aluminum+Glass |
Warranty |
3yrs |
|
Outer Carton Size |
1250*160*120mm |
G.W. |
6kg(13.2lbs) 1pcs/CTN |
|
Standard configuration |
LED Light x1,Power line x1, Outside Driverx1 |
||

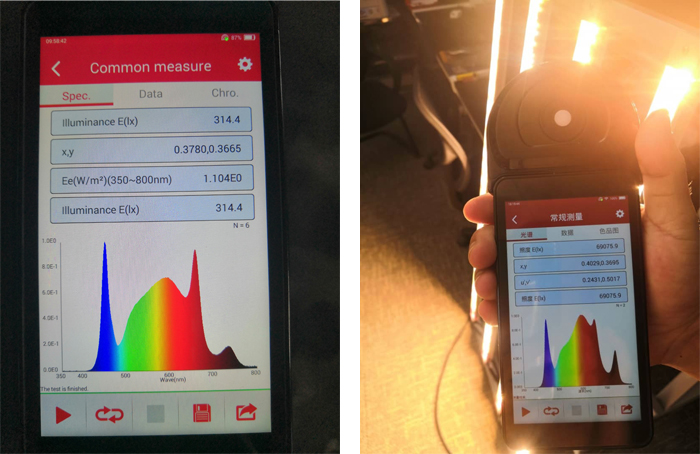

Spectrum :
PPFD Test: Umo/m2/s
|
Height |
1FT |
2FT |
3FT |
4FT |
5FT |
|
PPFD |
2659 |
1342 |
645 |
419 |
179 |
Q: What’s the Regular coverage for Veg ?
A: Coverage for Veg :5x3ft at 3-4ft
Q: What’s the Regular Coverage for Flower?
A: Coverage for Flower:4x3ft at 2-3ft

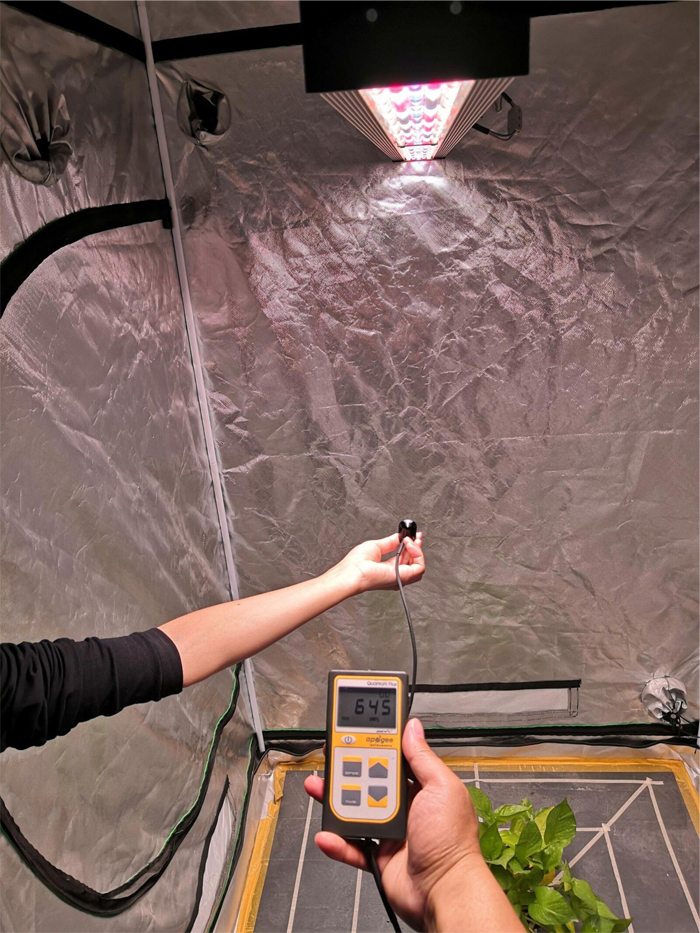

PPFD Test Picture:

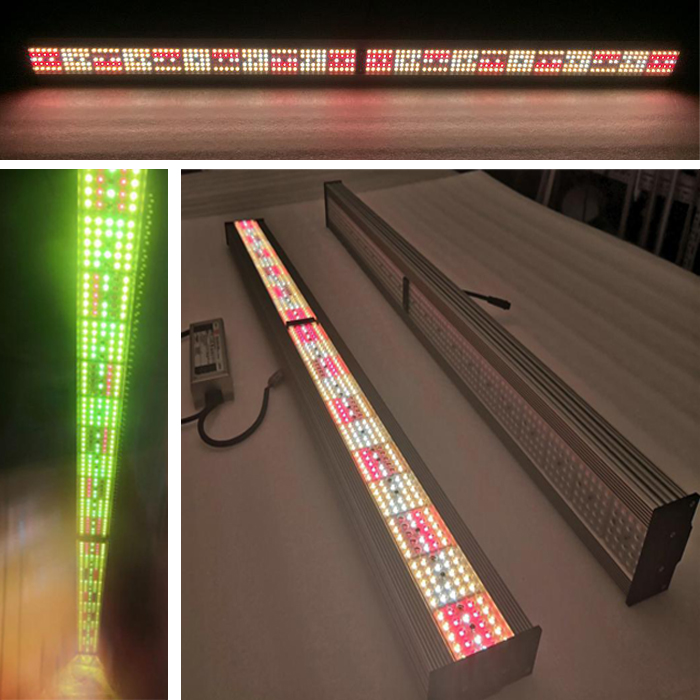

Pictures Related:
Advantages:
1.Samsung 301H+660+730nm.Real Full Spectrum+High Efficiency 2.6-28Umol/j;

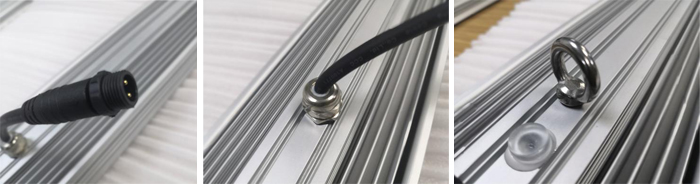

2.All Aluminum Body(6063) with Great heat Dissipation+IP65 Waterproof
3.Suitable All Grow Stages+Easy Maintenance+Easy Transportation.

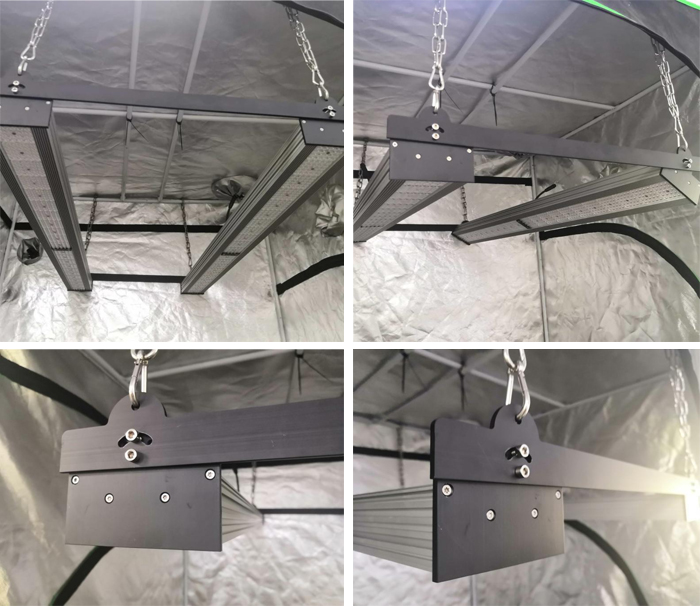

Installation:
1. Jack-chain with Hooks at Both End--One Piece Installation
Jack-chain+Adjustable Bracket--Two or More Piece installation

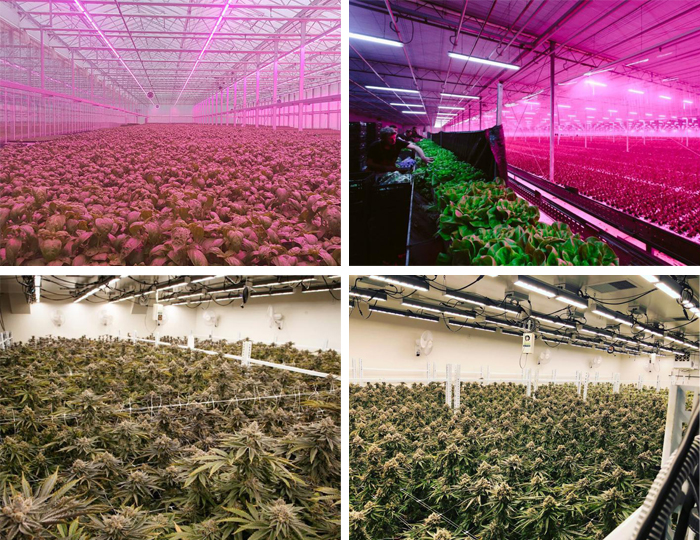

Application:
1. Supplement Lighting For Indoor Greenhouse all Kinds of Plants Growing;
2. Medical Plants grow in large scale or Small Grow Tent 3-4 Plants

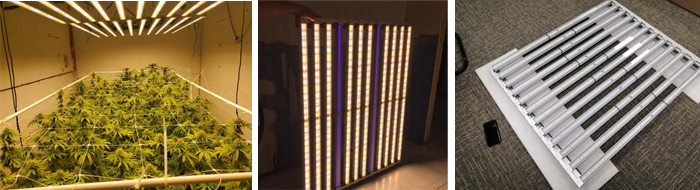

Several lamps into a full group
